Planmeca Compact i Touch
Innovative dental unit concept features ceiling mounted over the patient delivery with balanced instrument arms. Provides an ideal solution for various types of dental facilities from small practices to large hospitals.
Planmeca Compact i Touch
| Delivery System | Continental Traditional Side Delivery Cart Ceiling-mount |
| Mounting | Chair integrated to unit |
| Chair Features/Options | Wide, stable support for back and arms. Slim upper backrest for better access. Side-lifting mechanism together with a thin backrest provides exceptional access for operator and assistant. Compensating movement of backrest provides ideal comfort. |
| Rapid Left/Right Conversion | Yes (Side Delivery) |
| Operating Light Options | SingLED Operating Light included |
| No or Air/Water Lines | 5 |
| No of Lines with Fibre Optics | 5 |
| Maximum Handpiece Holders | 5 |
| Control Panel Options | Intuitive graphical user interface with fully integrated high resolution (800 x 480 pixels) touch panel with superb contrast ratio and low energy consumption LED backlight. |
| Foot Control | Wired |
| Integrated Factory Options | Brushless Electric Micromotor with Endo Function Curing Light Intraoral Camera Ultrasonic Scaler Glass Cuspidor LCD Monitor Articulated Arm Integrated Hygiene Systems |
| Dealer Fitted Options | Large number of available instruments for instrument console and for assistant side - all available as a post-installation retrofit. |
| Assistants Instrumentation | Seven assistant arm options with wide instrument choice. Syringe, HVE and SE suction hoses as standard. Curing Light, Camera and addition suction may be added. |
| Wet or Dry Vacuum | Wet or Semi Wet Standard Dry Suction Optional |
| ISO 11143 Amalgam Retention | Optional (Duerr amalgam retention fitted where required) |
| Spittoon Drain Valve | Optional |
| Waterline Disinfection | Planmeca Waterline Cleaning System (WCS) is a simple yet efficient method for removing microbial biofilm and preventing its formation in the dental unit waterlines. WCS is based on weekly overnight treatments with Planmeca Planosil cleaning agent. |
| Warranty | 2 Year Parts / 2 Year Labour |
| States where support is available | NSW, ACT, QLD, VIC, SA, WA, NT, TAS and NZ |
| Country of Manufacture | Finland |
-
Planmeca Compact i Touch
-
Planmeca Compact i Touch
-
Planmeca Compact i Touch
-
Planmeca Compact i Touch
-

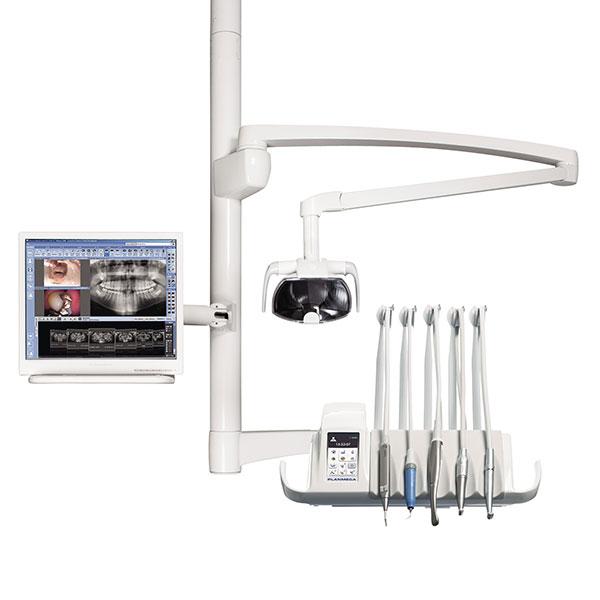

Planmeca Compact i Touch Ceiling Mount.
-

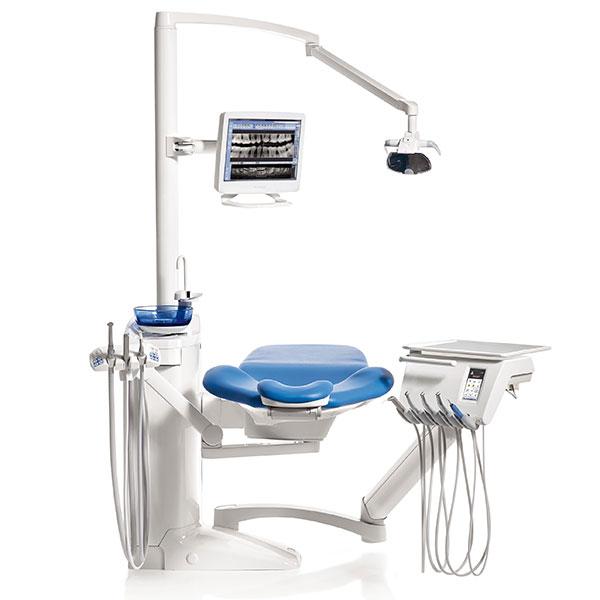

Planmeca Compact i Touch Cart.
-
Planmeca Compact i Touch.
